Navitas EZGO PDS 36/48V 600A Conversion Kit
Navitas EZGO PDS 36/48V 600A Conversion Kit



Alternative Views:


Price: $1,151.25


Product Code: 87-TSX3-600EZPDS


Condition*:
Brand New OEM ($1151.25)

Qty:
Description Manuals & Diagram

New - Navitas EZGO PDS 36/48V 600A Conversion Kit

87-TSX3-600EZPDS
Cross Reference/s: CL7013957 HU4264997 YP550220989 YP5502209-89

New - Navitas EZGO PDS Conversion Kit (36/48V 600A Model)

PRODUCT DESCRIPTION

The Navitas EZGO PDS, 600A model Conversion Kit is one of the DC Controller Packages developed and manufactured by Navitas Vehicle System. It is a 600A conversion kit compatible with EZGO PDS vehicles operating with a DC Shunt Wound Motor. The kit is only compatible with E-Z-GO PDS vehicles utilizing a Curtis 1206MX and it is composed of a 600A controller, an On-The-Fly (OTF) Programmer, and a TSX harness.


The Navitas EZGO PDS kit can now be purchased in Cloud Electric, your one-stop shop for all your electric component needs and one of the leading distributors in North America. Our store takes pride in the service we provide such as reliable product information, lowest possible prices, and shipping speed. The most in demand products necessary for industrial vehicles ranging from boom trucks to golf carts are also available in the store.


Kit Inclusions:

  1. TSX Controller (36/48V, 600A)

  2. On-The-Fly Programmer

  3. TSX Harness

  1. TSX3.0 Controller:

The TSX controller is a power MOSFET technology that is fully-programmable allowing flexible motor control. This kit is specifically equipped with a 36/48V, 600A TSX3.0 controller.


Some of the controller features include regenerative braking, speed limiting, and various safety features. It is also capable of communicating with other bluetooth, RS232, and CAN Bus-enabled devices allowing changing the vehicle settings virtually.


The controller specification is tabulated below:

Type:

TSX3.0 Controller

Motor:

DC Shunt Wound Motor

Model:

600 Amp

Battery Voltage (V)

36/48

Field Current (A)

50, Peak


The controller features are listed below:

  • Ability

  • Capable of recapturing kinetic energy through regenerative braking

  • A voltage-controlled power MOSFET device

  • Allows safety through speed-limiting

  • Sensor input

  • Adaptability

    • Multiple mounting options

    • Dust resistance

    • Lightweight

    • Compact design

    • Easy installation

  • Safety

    • Anti-Rollback feature

    • Thermal and undervoltage protection

  • Additional Feature for TSX Controllers

    • The controller allows changing the motor direction without a contactor improving the overall performance of the motor.



  1. TSX Harness

The TSX harness included in the kit is designed for PDS models of E-Z-GO. The parts of the TSX harness are shown below together with the wiring diagram.


  1. On-The-Fly Programmer

An OTF Programmer uses a programming style that allows live coding during run time allowing the driver to control the vehicle while operating.

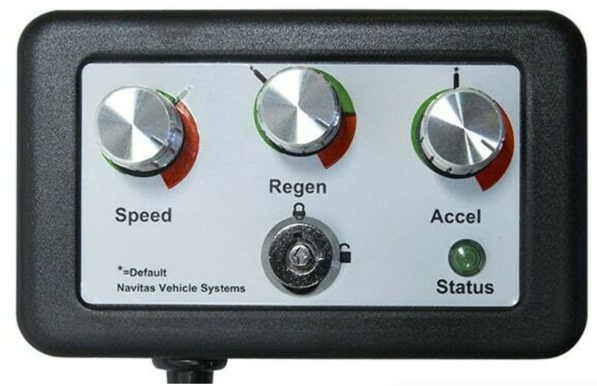

Parts of the On-The Fly Programmer:

The OTF programmer has 5 partsó3 switch knobs, a key lock, and an LED light indicator

  • Switches: The switch knobs are for Speed, Regen, and Acceleration.

    • The SPEED switch functions as a speed and range controller. When limiting the speed to a lower rate, the vehicle will have a longer runtime.

    • The REGEN switch allows braking control both for safety and its recharging capabilities.

    • The ACCEL switch allows acceleration control to ensure that the vehicle is safe from sudden unintended acceleration.

  • Key Lock: A safety feature that ensures that the car rejects input unless unlocked.

  • STATUS LED Light: Indicates the condition of the vehicle providing system diagnostics to alert the driver.
