PRODUCT DESCRIPTION
The GE R4W606MC2 is a separately excited controller with regenerative braking to zero speed. The model has an operating voltage of 48 volts, an armature current of 600 amperes, and a field current of 60 amperes. The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.
SPECIFICATIONS
|
TYPE OF CONTROL
|
Regenerative Braking to Zero Speed
|
|
OPERATING VOLTAGE
|
48 V
|
|
ARMATURE CURRENT
|
600 A
|
|
FIELD CURRENT
|
60 A
|
|
PACKAGING
|
W: 220 mm x 275 mm
|
FEATURES Allows reversing the motor direction Allows driving at a very low speed Acceleration control, current, and speed limit Regenerative Braking to Zero speed Ramp start Anti-rollback protection Has two steer pump time delay SRO: Static Return to Off Has accelerator volts hold off Pulse monitor trip Thermal, voltage, hardware, and circuitry protection System diagnosis is available RS232 communication
DIMENSIONS

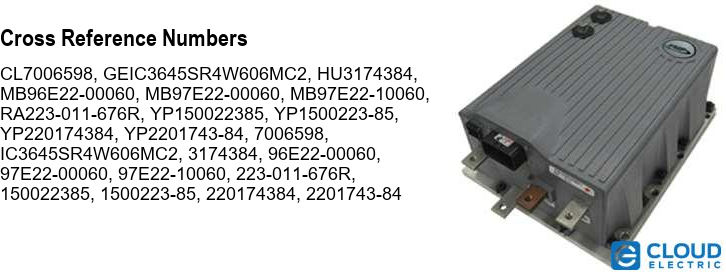

Cross Reference:
CL7006598, GEIC3645SR4W606MC2, HU3174384, MB96E22-00060, MB97E22-00060, MB97E22-10060, RA223-011-676R, YP150022385, YP1500223-85, YP220174384, YP2201743-84
7006598, IC3645SR4W606MC2, 3174384, 96E22-00060, 97E22-00060, 97E22-10060, 223-011-676R, 150022385, 1500223-85, 220174384, 2201743-84
Please select the preferred condition for GE 48V 600/60A Regen SX Controller R4W606MC2 if options are available.
Remanufactured OEM GE 48V 600/60A Regen SX Controller R4W606MC2 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.
Repair Service for GE 48V 600/60A Regen SX Controller R4W606MC2 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)
For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.
|
|
|
 |
|
 |
|
