KLS7250H : Kelly KLS7250H,24V-72V,400A,Sealed sinusoidal wave BLDC motor controll
KLS7250H : Kelly KLS7250H,24V-72V,400A,Sealed sinusoidal wave BLDC motor controll

Price: $439.00


Availability:: Usually Ships in 1 to 2 Business Days
Product Code: KLS7250H
Qty:

Description Manuals & Diagram


KLS7250H : Kelly KLS7250H,24V-72V,400A,Sealed sinusoidal wave BLDC motor controll


PRODUCT DESCRIPTION

The KLS7250H reduces the noise of a BLDC motor with three hall sensors. It is programmable using a PC software and a RS232 cable to connect on a Z-TEK USB. The LED flashing pattern indicates fault sources then look over the error code through the software. The built-in current loop and over current protects the motor controller. This can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


SPECIFICATIONS

OPERATION FREQUENCY

10kHz or 20kHz

BATTERY CURRENT

< 0.5 mA (Standard)

SUPPLY CURRENT

5V or 12V Sensor: 40 mA

CONTROLLER SUPPLY VOLTAGE RANGE

18V to 90V for controllers rated equal or lower than 72 volts

SUPPLY CURRENT

30mA (typical)

BATTERY VOLTAGE RANGE

18V to 1.25* Configurable

THROTTLE INPUT

0-5 V

3-wire resistive pot

0-5 V (Standard)

Hall active throttle

1-4 V (Standard)

TEMPERATURE RANGE


Operating at full power

0°C to 70°C (MOSFET)

Operating

-40°C to 100°C (MOSFET)

NOMINAL VOLTAGE

24-72 volt

PACKAGING

IP66


FEATURES

  1. Microprocessor is powerful and intelligent

  2. Very efficient

  3. Reversing is electronic

  4. Monitors voltage for power supply, bus, and 3 motor phases

  5. All 3 motor phases have current sense

  6. Current control loop

  7. Protection from overcurrent

  8. Protection from overvoltage

  9. The limit of battery and motor current is configurable

  10. Low EMC

  11. Battery is protected using warnings, cutback, and shutdown

  12. Rugged housing made of aluminum

  13. Protected from extreme temperatures

  14. Easy installation

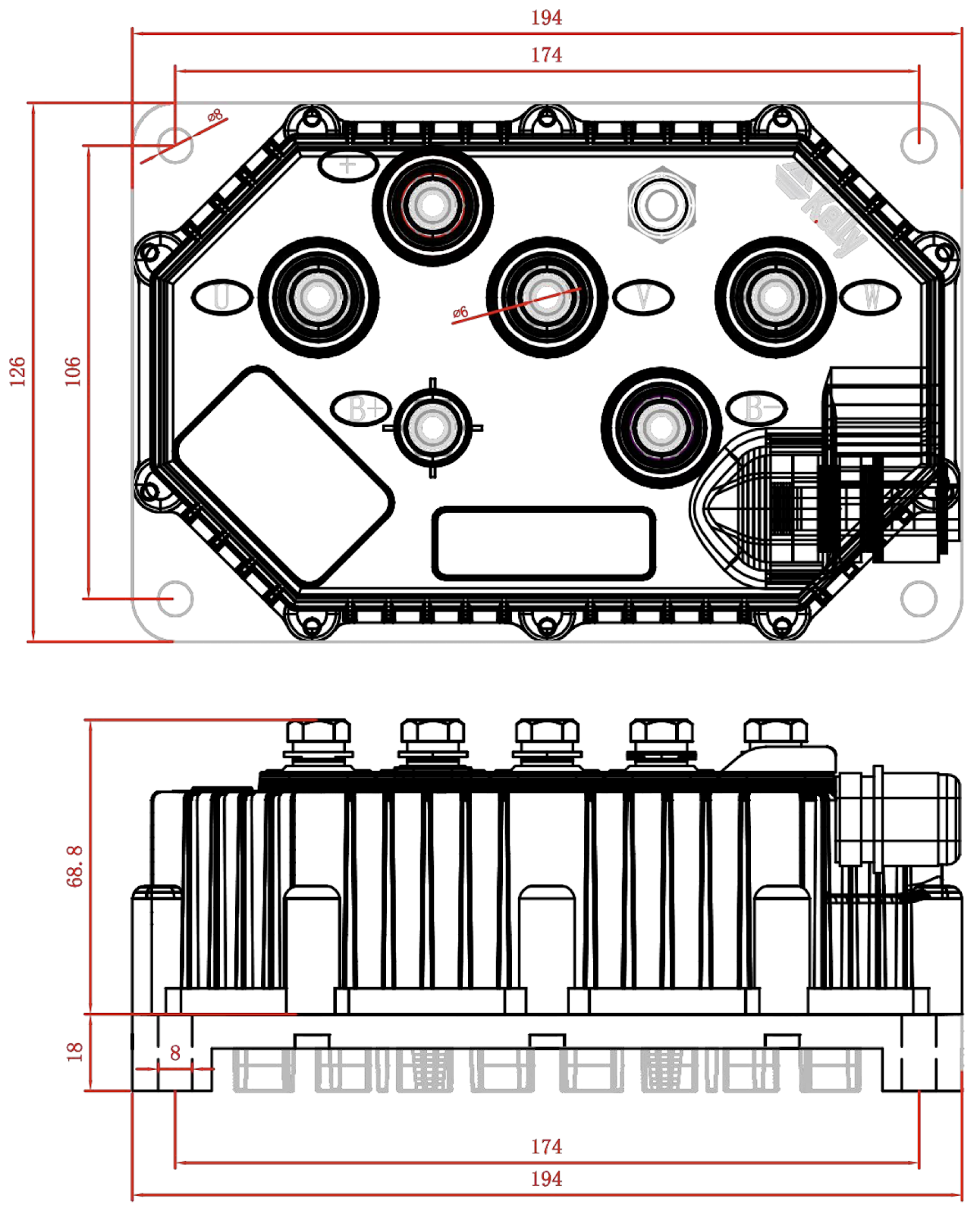

DIMENSIONS OF MOUNTING HOLES

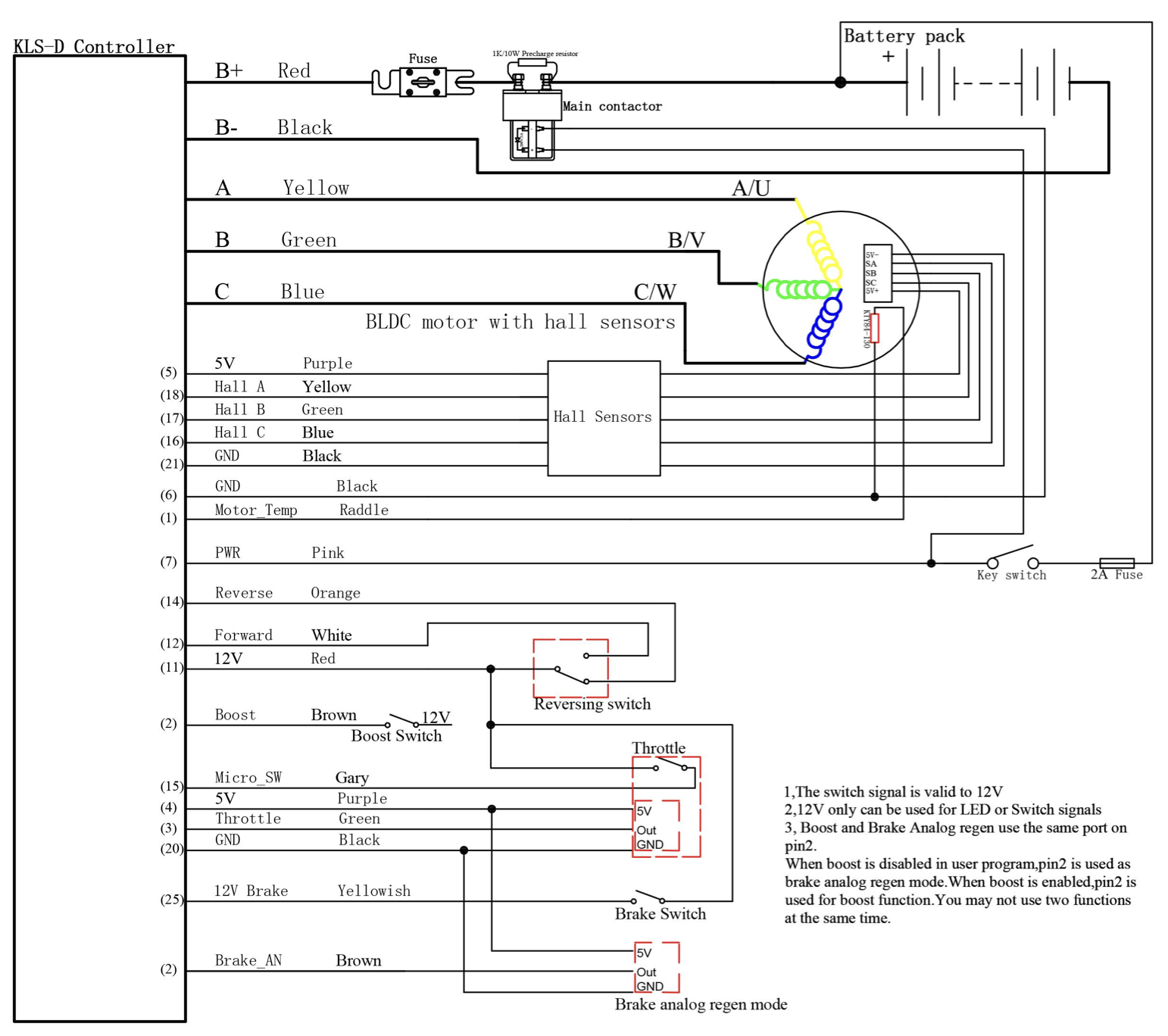

STANDARD WIRING
