Manufacturers and users of electric vehicles are converting their DC motors to an AC induction motor as more advantages lean towards it than with DC motors. An AC motor is superior in terms of product life, efficiency, and torque generation. Navitas has various DC to AC Conversion kits and they come in different part combinations curated to supplement compatibility demands depending on the vehicle model, stock controller, and throttle type.

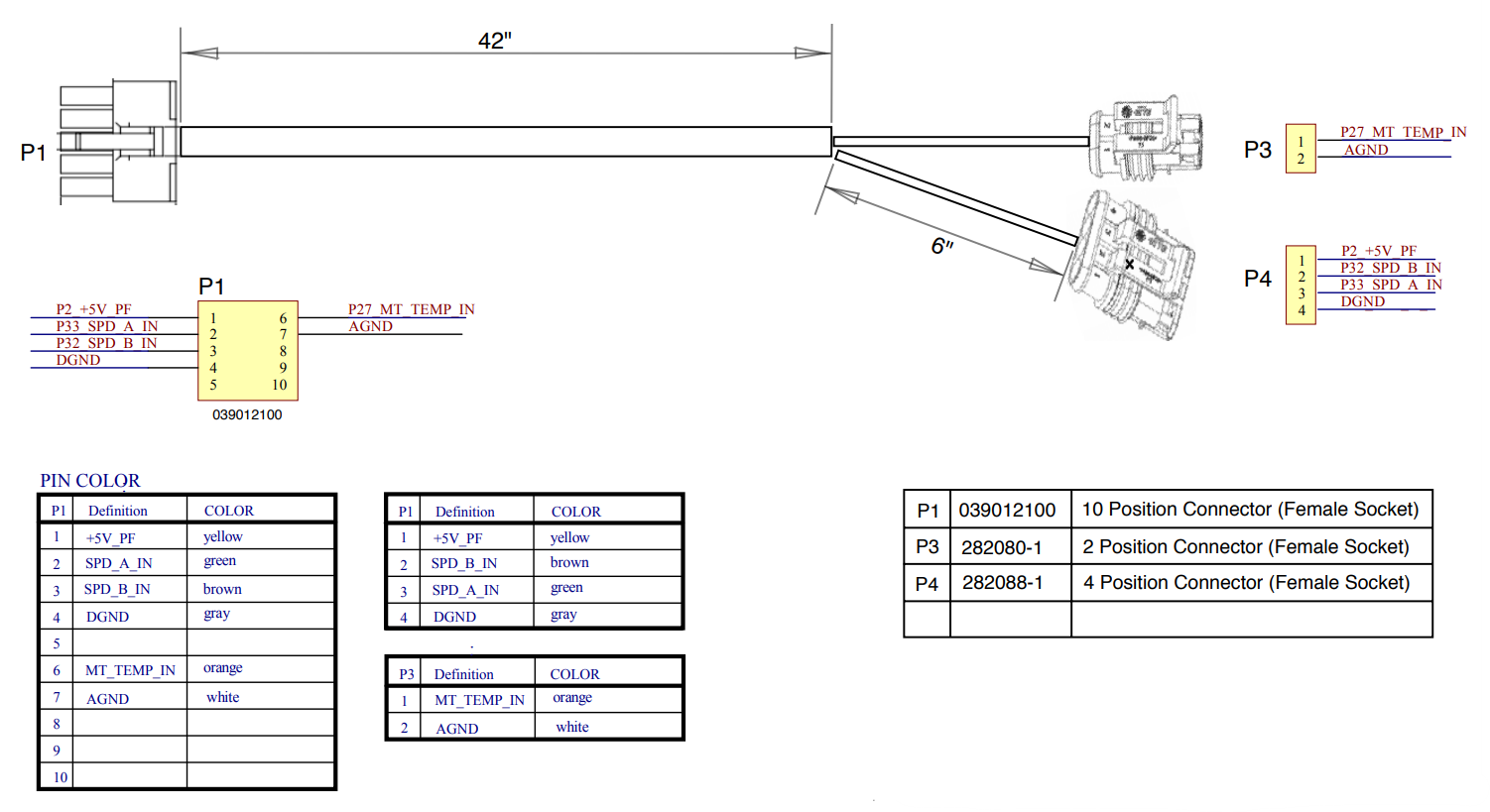

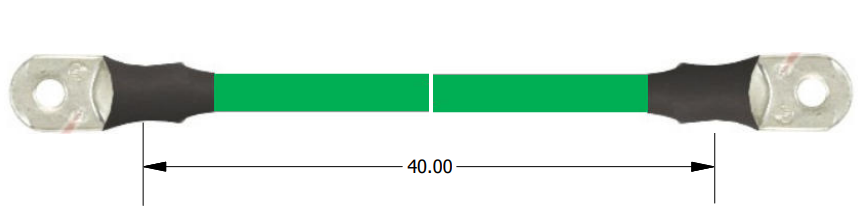

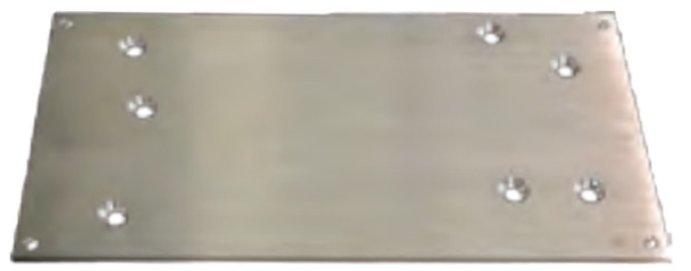

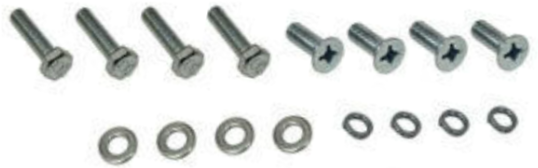

This product is one of the DC to AC Conversion Kits that Navitas offers. It is composed of a controller, an On-The-Fly (OTF) Programmer, a motor, mounting kit, and cables. It is also only compatible with specific E-Z-GO vehicles utilizing ITS throttle and Curtis 1268 controller.
The Navitas EZGO 1268 ITS DC to AC conversion kit can now be purchased in Cloud Electric, your one-stop shop for all your electric component needs and one of the leading distributors in North America. Our store takes pride in the service we provide such as reliable product information, lowest possible prices, and shipping speed. The most in demand products necessary for industrial vehicles ranging from boom trucks to golf carts are also available in the store.
The kit is designed only for the following vehicles:

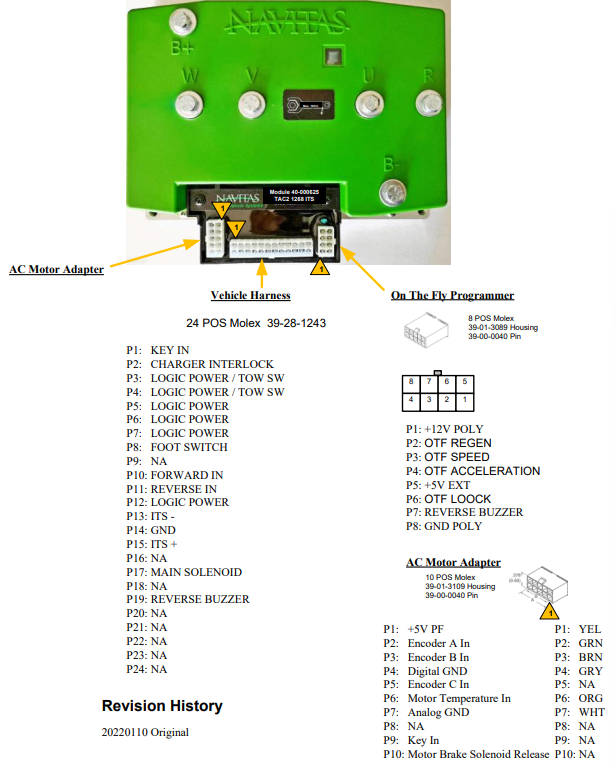

TAC2 Controller (48V, 440A)
AC Induction Motor (4kW)
The TAC2 controller is a power MOSFET technology that is fully-programmable allowing flexible motor control. This controller has an output capability of up to 600A and battery voltage of 48-72V. This kit is specifically equipped with a 48V, 440A TAC2 controller.

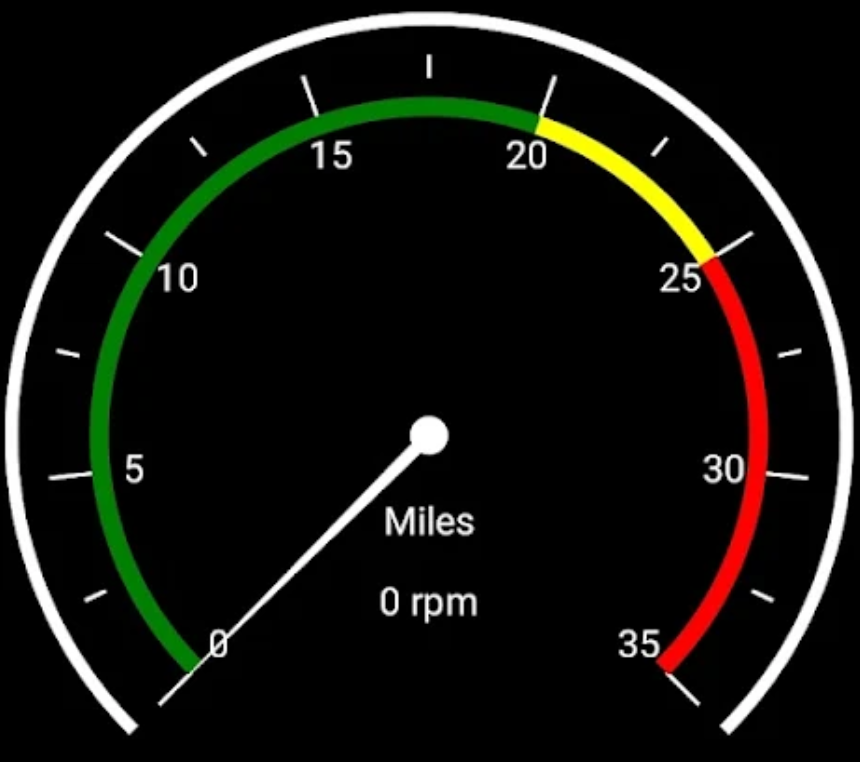

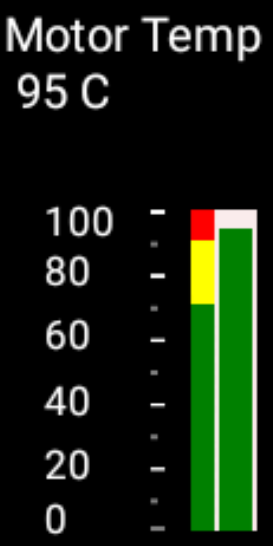

Regenerative braking, speed limiting, and anti-rollback protection are some of the key features both controllers have. It can also communicate with other bluetooth, RS232, and CAN Bus-enabled devices allowing users to virtually change the settings of the vehicle.
Features of the TAC2 Controllers:
