Curtis 24/36V 150A (5K-0) PMC 1207-1123
Curtis 24/36V 150A (5K-0) PMC 1207-1123


Price: $298.76

Price with Selected Options: $298.76


Product Code: 1207-1123


Condition*:
Remanufactured OEM ($298.76) -

Repair Service ($239.59)

Qty:
Description Manuals & Diagram

Cross Reference:

CL7007851, CT1207-1123, CT137197-002, HU3183907, PM1137197-002, PM137197-002, YP150120993, YP1501209-93
7007851, 1207-1123, 137197-002, 3183907, 1137197-002, 137197-002, 150120993, 1501209-93

Please select the preferred condition for Curtis 24/36V 150A (5K-0) PMC 1207-1123 if options are available.

Remanufactured OEM Curtis 24/36V 150A (5K-0) PMC 1207-1123 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 24/36V 150A (5K-0) PMC 1207-1123 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.




Curtis 24/36V 150A (5K-0) PMC 1207-1123

PRODUCT DESCRIPTION

The programmable motor speed controller, Curtis Controller Model 1207-1123, operates at a high frequency of 15 kHz, making it a noiseless and cost-efficient choice for small-sized electric vehicles such as pallet trucks and sweepers. The controllers of this model have premium and high-power features despite its compact design. Similar to other Curtis controllers, it is also compatible with the handheld programmer which is an optional device to use in adjusting parameters and conducting diagnostics and tests.


The Curtis 1207-1123 has a nominal voltage of 24-36 volts, a current limit of 150 amperes, and a 5K-0 ohm throttle input. It weighs 1.1 kg and is 165 mm in length, 122 mm in width, and 60 mm in depth. It provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


SPECIFICATIONS

NOMINAL VOLTAGE RANGE

24-36 V

MINIMUM ELECTRICAL ISOLATION

Due to Heatsink: 500 VAC

VOLTAGE


  • Operational (Max)

45 V

  • Operational (Min)

16 V

  • Undervoltage

16 V

  • Overvoltage

48 V

CURRENT RATING (With Mounting Specification)


  • 1 Minute

150 A

KSI INPUT


  • Input Voltage

16-45 V

  • Input Current

W/o Programmer: 80 mA

W/ Programmer: 130 mA

LOGIC INPUT


  • Voltage

8 V

  • Current

10 mA @ 24 V

CURRENT LIMIT RANGE

250-300 A

OPERATING FREQUENCY

15 kHz

THROTTLE INPUT

5K-0 ohms

TEMPERATURE


  • Ambient (Operational)

-25°C to 50°C

  • Undertemperature Cutback (Heatsink)

-25°C

  • Overtemperature Cutback (Heatsink)

85°C


PHYSICAL SPECIFICATIONS

PACKAGING

Resistant to splash

WEIGHT

1.1 kg

DIMENSION

  • Length

165 mm

  • Width

122 mm

  • Depth

60 mm


FEATURES

Feature

Purpose

Power MOSFET

Highly efficient and noiseless operation

Compact Sizing

The design is particularly smaller than other Curtis controllers

Over and Under Voltage Protection

Protects the device and load against damage

Protection and Compensation Circuit for Temperature

Allows stable current limit and cutback function for during under and over temperature condition

On-Board Potentiometer (exclusive for single-mode models of 1207)

The speed, acceleration, and plug and main current limit are manually adjusted and controlled using the potentiometer

Circuitry for Fault Detection

Helps in preventing runaway conditions and monitors components such as the battery, and a bypass contactor, among others

Input Sequencing Options

  • Static Return to Off: Allows a safe start by requiring the forward and reverse selector to be returned to a neutral position before allowing an output

  • Neutral Start: Avoids risk of starting the vehicles when not in a neutral position

Contactor is Controlled by Microprocessors

Enhances the switching and contactor control

Neutral Braking Feature

The plug braking is automatically enabled in a neutral position

MultiMode input

The top speed of the vehicle is controlled and with applied limits along with 2 operating personalities

Emergency Reverse

Stops the advancing vehicle swiftly to allow a smooth change in direction (reverse)

Ramp Start

Produces power when beginning to go uphill

Simple wiring and driver monitoring

Prevents faults allowing it to operate without failure

Throttle Circuitry is Flexible

Allows various throttle options to be used for the controller

Ramp Programming

The static throttle map feature allows flexible adjustment of throttle response

Plating (Bus Bars)

Protection for solid copper bus bars

High-Quality Construction

The controller has a mounting plate made of aluminum and a cover made from injection molding


OPTIONAL FEATURES

  • Compatible with Handheld Programmer: Allows programming of functions and parameters. It also conducts testing and diagnosis



DIMENSIONS



WIRING DIAGRAM

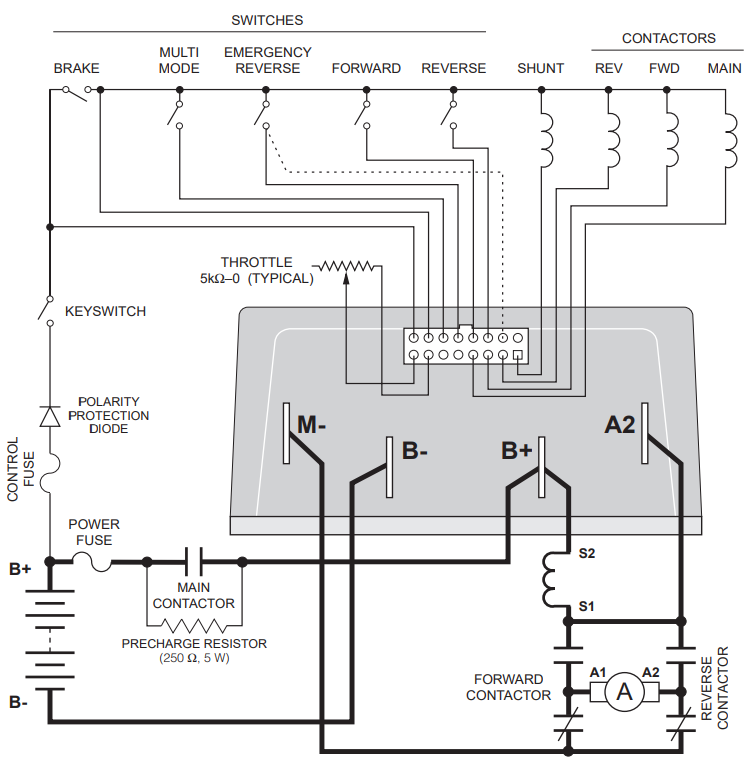

Wiring Diagram for 1207 (Series Motor)

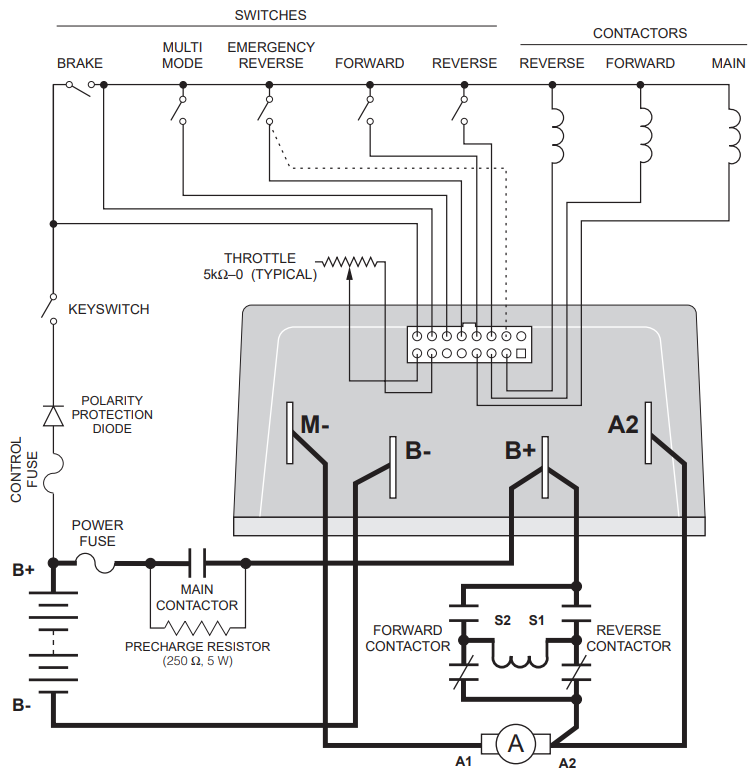

Wiring Diagram for 1207 (Compound Motor)
