Curtis 36/48V 275A (0-5K) PMC 1204X-5202

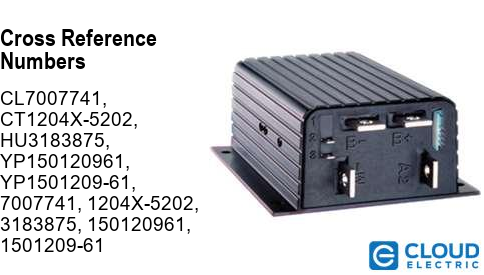

Cross Reference:

CL7007741, CT1204X-5202, HU3183875, YP150120961, YP1501209-61
7007741, 1204X-5202, 3183875, 150120961, 1501209-61

Please select the preferred condition for Curtis 36/48V 275A (0-5K) PMC 1204X-5202 if options are available.

Remanufactured OEM Curtis 36/48V 275A (0-5K) PMC 1204X-5202 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 36/48V 275A (0-5K) PMC 1204X-5202 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The Curtis Controller from the 1204X model is designed to operate at a frequency of 15 kHz, making it silent in addition to being efficient in terms of cost and its ability to control the brake, torque, and speed of the motor fitted for various industrial applications. It is generally used for electric vehicles ranging from equipment assisting material handling to boom trucks.

The Curtis 1204X-5202 is a 36/48-volt model with 275 amperes and uses a 0-5K ohms throttle input. This controller can provide a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

ELECTRICAL SPECIFICATIONS

INPUT BATTERY VOLTAGE (NOMINAL)	36 - 48 V
OPERATING FREQUENCY	15 kHz
CURRENT
STANDBY	20 mA
LIMIT	275 A
RATING
2 MIN	275 A
5 MIN	200 A
1 HOUR	125 A
VOLTAGE DROP (100A)	0.35 V
CUTBACK (UNDERVOLTAGE)	21 V
MAXIMUM TOTAL CURRENT (F/R) + 1A	1 A
THROTTLE INPUT	0-5K ohms
300 ohms	Beginning of Input
4,400 ohms	Full Output

PHYSICAL SPECIFICATIONS

WEIGHT	1.8 kg
LENGTH	174 mm
WIDTH	146 mm
DEPTH	70 mm

FEATURES

Feature	Purpose
Brake Control and Variable Drive Speed	Allows accurate vehicle control for an improved driving experience
Power MOSFET	Highly efficient and noiseless operation
Protection and Compensation Circuit for Temperature	Allows stable current limit and cutback function for during under and over temperature condition
Cutback Function (Undervoltage)	Provides protection from low battery voltage (internal and/or external)
Circuitry for Fault Detection	Helps in preventing runaway conditions and monitors components such as the battery, and a bypass contactor, among others
Contactor Coils Protection	Protects the contactor drivers for forward, reverse, and bypass from short circuit
Easy Installation	No further alterations
Tin-plating (Bus Bars)	Protection for solid copper bus bars
Push-in Connectors	Allows control wiring

OPTIONAL FEATURES

Static Return to Off: Allows a safe start by requiring the forward and reverse selector to be returned to a neutral position before allowing an output
High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to a neutral position
Emergency Reverse: Stops the advancing vehicle swiftly to allow a smooth change in direction (reverse)

DIMENSIONS

WIRING DIAGRAM

Note: Bypass (1A) is available only for 1204x models in 12 Volts and 24-36 Volts
