Curtis 96/144V 500A (0-5K) PMC 1231C-8604
Curtis 96/144V 500A (0-5K) PMC 1231C-8604




Price: $1,126.17

Price with Selected Options: $1,126.17


Product Code: 1231C-8604


Condition*:
Remanufactured OEM ($1126.17)
Repair Service ($900.16)

Qty:
Description Manuals & Diagram

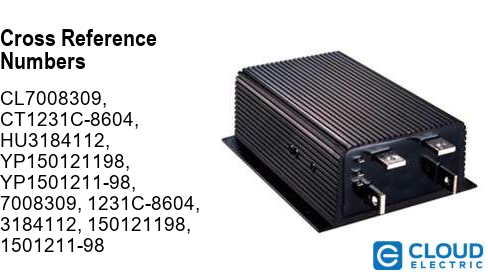

Cross Reference:

CL7008309, CT1231C-8604, HU3184112, YP150121198, YP1501211-98
7008309, 1231C-8604, 3184112, 150121198, 1501211-98

Please select the preferred condition for Curtis 96/144V 500A (0-5K) PMC 1231C-8604 if options are available.

Remanufactured OEM Curtis 96/144V 500A (0-5K) PMC 1231C-8604 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 96/144V 500A (0-5K) PMC 1231C-8604 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.




Curtis 96/144V 500A (0-5K) PMC 1231C-8604

PRODUCT DESCRIPTION

The electronic motor speed controller, Curtis Controller Model 1231C-8604, operates at a high frequency of 15 kHz and 1.5 kHz, making these controllers a noiseless and cost-efficient choice as they permit smooth control of brake, torque, and speed. It is designed to suit various industrial applications such as vehicles for material handling and on-road cars.


The Curtis 1231C-8604 is a 96-144 volt model with 500 amperes and 0-5K ohms throttle input. The controller weighs 8.6 kg, 309 mm in length, 220 mm in width, and 94 mm in depth. It also provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.



SPECIFICATIONS

NOMINAL VOLTAGE

96-144 V

VOLTAGE DROP

0.30 V @ 100 A

CUTBACK: UNDERVOLTAGE

64 V

CURRENT LIMIT

500 A

RATING


  • 2 Minute

500 A

  • 5 Minute

375 A

  • 1 Hour

225 A

STANDBY CURRENT

30 mA

OPERATING FREQUENCY

15 kHz and 1.5 kHz

TEMPERATURE RANGE DURING OPERATION

-25°C to 85°C

THROTTLE INPUT

0-5K ohms


PHYSICAL SPECIFICATIONS

PACKAGING

IP65

WEIGHT

8.6 kg

DIMENSION

  • Length

309 mm

  • Width

220 mm

  • Depth

94 mm



FEATURES

Feature

Purpose

Frequency Shifting (Only available for C model)

During low-duty cycles, it enhances control of the current limit

Brake Control and Variable Drive Speed

Allows accurate vehicle control for an improved driving experience

Power MOSFET

Highly efficient and noiseless operation

Protection and Compensation Circuit for Temperature

Allows stable current limit and cutback function for during under and over temperature condition

Cutback Function (Undervoltage)

Provides protection from low battery voltage (internal and/or external)

Circuitry for Fault Detection

Helps in preventing runaway conditions and monitors components such as the battery, and a bypass contactor, among others

Easy Installation

No further alterations

Tin-plating (Bus Bars)

Protection for solid copper bus bars

Push-in Connectors

Allows control wiring



OPTIONAL FEATURE/S:

  • High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to a neutral position



DIMENSIONS



WIRING DIAGRAM
