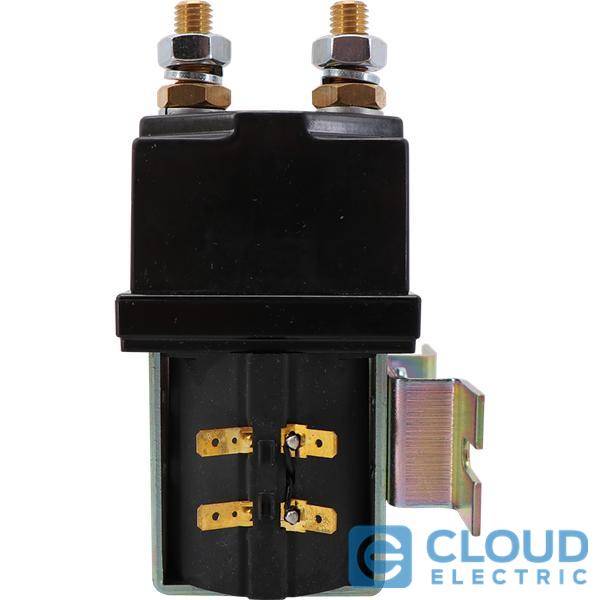

SW200N-742: Albright 36V 200A Contactor

PRODUCT DESCRIPTION

The SW200 series is designed for direct current loads such as industrial trucks, electric forklifts, or airport tractors. This is suitable for interrupted and uninterrupted loads of resistive, capacitive, and inductive load switching. Albright SW200N-742 is a single pole, single throw contactor in 36 voltage and 200 ampere. The SW200N series indicates that ‘N’ contactor types do not have magnetic blowouts. The double break main contact is equipped with silver-alloy tips that are weld resistant, designed to perform excellent conductivity. The contactor can be mounted using 5mm tapped holes and brackets. This series includes a stud main terminal for M10 and 6.3mm spade coil connections. The main terminals allow vertical or horizontal mounting. Vertical mounting requires pointing the M10 contact studs upwards.

The SW200N-742 controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric components needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

FEATURES

CONNECTION DIAGRAM

DIMENSIONS
