MO-170-010-0005: Series Motors (48 Volts @ 225 Amp 6.8/8.6 Peak HP Stock Controller)
MO-170-010-0005: Series Motors (48 Volts @ 225 Amp 6.8/8.6 Peak HP Stock Controller)

Price: $552.00


Free Shipping
Product Code: MO-170-010-0005
Qty:

Description


PRODUCT DESCRIPTION

The 170-010-0005 is a high-torque series motor. It is compatible with older Yamaha axles and Club Car. The 10-tooth motor reaches a speed of 18 mph with 20% more torque at 48 V, while the maximum power is 6.8 hp (5 kW) or 8.6 hp (6.3 kW).


The 170-010-0005 motor can be purchased at Cloud Electric, your one-stop shop for all your EV needs. For more questions regarding D&D motors, reach out to us and we would gladly help. CE is the leading distributor of these components in North America and we deliver informative product descriptions, great pricing, and speedy shipping.


SPECIFICATIONS

COMPATIBLE MAKE

Older Yamaha Axles

Club Car

TYPE

Series

VOLTAGE

36 V to 48 V

MAXIMUM POWER

6.8 hp (5 kW) or 8.6 hp (6.3 kW)

MAXIMUM SPEED

18 mph

SPLINES

10-Tooth

MOTOR LENGTH 9.7 inches

INSULATION RATING

Class H


PRODUCT DESIGN

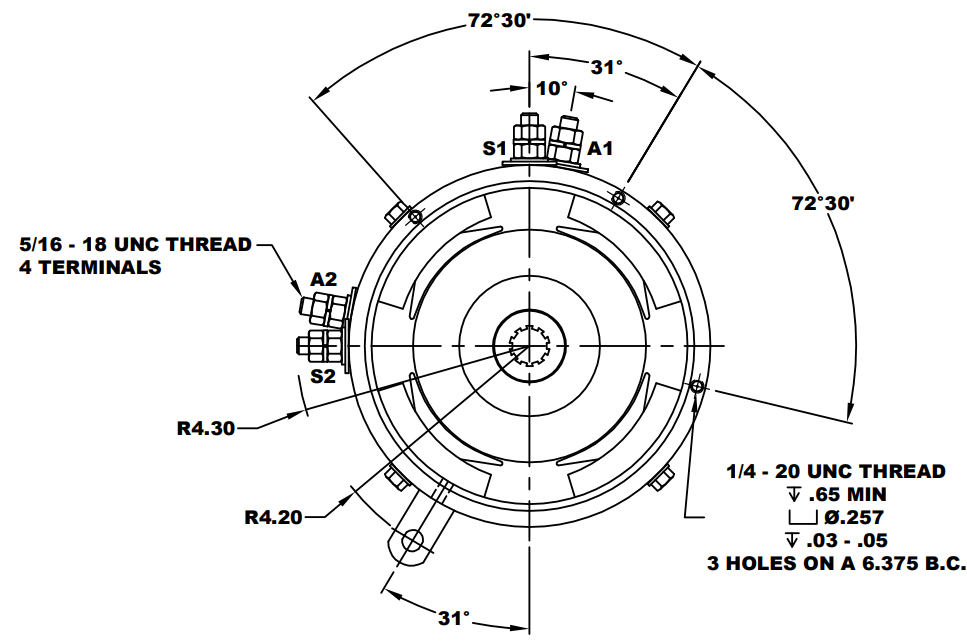

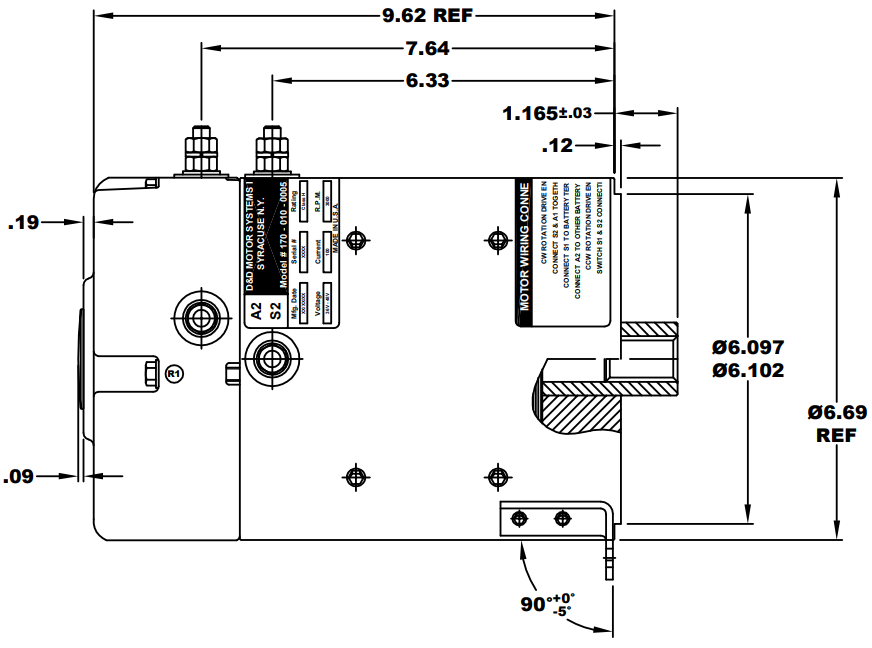

Here is a mechanical diagram of the motor:



MORE ABOUT D&D MOTORS

Some points to remember:

  1. Golf cart motors from D&D work on 36 V and 48 V models.

  2. Save an image of the motor wiring before removing it. Then use it as a reference since the replacement motor will be installed similarly.

  3. They have series and regen motors for golf carts. Check the field coils to know which type your cart has. A regen motor has round wires, while a series type has flat wires.

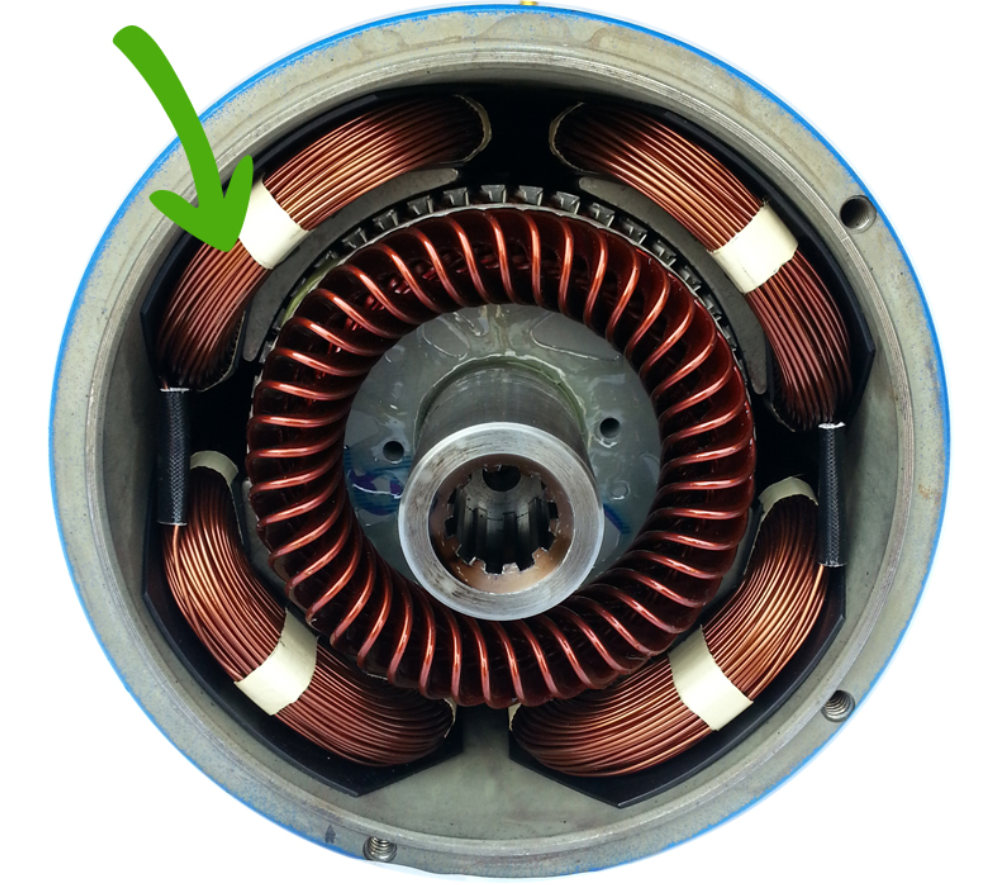

Regen Type

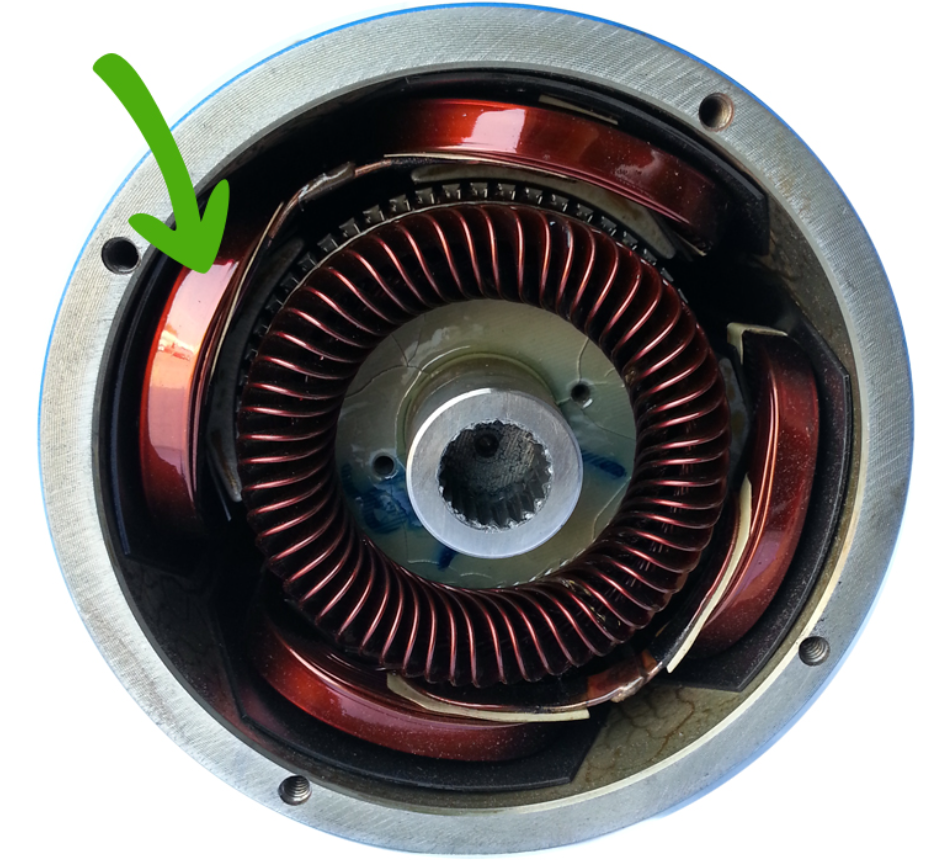

Series Type
