GE 352C5 Upgrade 503 H4D503C5R2

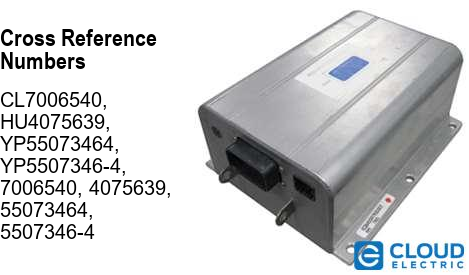

Cross Reference:

CL7006540, HU4075639, YP55073464, YP5507346-4
7006540, 4075639, 55073464, 5507346-4

Please select the preferred condition for GE 352C5 Upgrade 503 H4D503C5R2 if options are available.

Remanufactured OEM GE 352C5 Upgrade 503 H4D503C5R2 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for GE 352C5 Upgrade 503 H4D503C5R2 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

The GE H4D503C5R2 is an upgrade for separately excited controllers (352C5) with plug braking. The model has an operating voltage of 48 volts, an armature current of 500 amperes, and a field current of 30 amperes. The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.

SPECIFICATIONS

TYPE OF CONTROL	Plug Braking
OPERATING VOLTAGE	48 V
ARMATURE CURRENT	500 A
FIELD CURRENT	30 A
PACKAGING	D: 174 mm x 170 mm

FEATURES

Allows reversing the motor direction
Allows driving at a very low speed
Has acceleration control, current, and speed limiting
Plug Braking
Ramp start
Anti-rollback protection
Has two steer pump time delay
SRO: Static Return to Off
Has accelerator volts hold-off
Pulse monitor trip
Thermal, voltage, hardware, and circuitry protection
System diagnosis is available
RS232 communication

MECHANICAL DIMENSIONS
