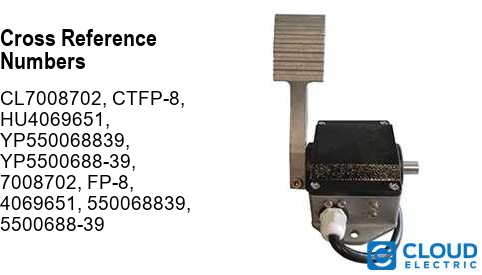

Curtis 0-5K Foot Pedal Assembly FP-8

Cross Reference:

CL7008702, CTFP-8, HU4069651, YP550068839, YP5500688-39
7008702, FP-8, 4069651, 550068839, 5500688-39

Please select the preferred condition for Curtis 0-5K Foot Pedal Assembly FP-8 if options are available.

Remanufactured OEM Curtis 0-5K Foot Pedal Assembly FP-8 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 0-5K Foot Pedal Assembly FP-8 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT DESCRIPTION

Curtis Foot Pedal is a necessary component in a motor vehicle for regulating the amount of power delivered to the system. It is a straightforward 0-5K pedal from Curtis Instruments, which uses a plastic potentiometer with conductive properties since it gives a resistive output. In this case, the angle of the pedal dictates the amount of acceleration intended by the user.

The foot pedal can now be purchased here is Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. The store takes pride in our informative product descriptions, reliable pricing, and fast shipping.

WIRING DIAGRAM

This throttle has three 3 wires that functions as follows:
RED: Pot High

BLACK: Pot Low

WHITE: Wiper

BLUE: Micro Switch

GREEN: Micro Switch 1 N/O

FEATURES

Mounting options: Wall or Floor
Longer shaft that allows modification of the pedal arm side
Features a stainless steel hardware, making it easier to clean.
Safe from gear distortion
With dual spring component, making it fail safe
Powder-coated aluminum casing

SPECIFICATIONS

SIGNAL	0-5K Ohm
MAX CURRENT	8A
RESISTIVE LOAD	30VDC
OPERATING TEMPERATURE	-40C to 70C
ELECTRICAL ANGLE	22 degrees
PACKAGING	IP66
PRODUCT LIFE	1M operations

DIMENSIONS
