Sevcon SC2000 72/96V 650A Controller 63163003

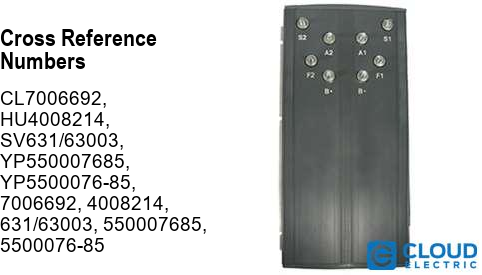

Cross Reference:

CL7006692, HU4008214, SV631/63003, YP550007685, YP5500076-85
7006692, 4008214, 631/63003, 550007685, 5500076-85

Please select the preferred condition for Sevcon SC2000 72/96V 650A Controller 63163003 if options are available.

Remanufactured OEM Sevcon SC2000 72/96V 650A Controller 63163003 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Sevcon SC2000 72/96V 650A Controller 63163003 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.

PRODUCT NUMBER

The Sevcon 63163003 belongs to the Sevcon SC2000 controller family. This controller is a traction/pump controller with embedded features for fault detection, safety, and convenience. Some optional features are also available to match the demand according to the needs of the user. A separate calibration unit compatible with the controller is also available for manual and digital adjustment of the parameters of the controller.

Technically, Sevcon 63163003 is a 72/96-volt model with a current limit of 650 amperes. The controller is operating at a frequency of 15.7 kHz allowing noiseless operation. It is designed with five (traction) or four (pump) power terminals, high-quality microprocessors, compact packaging, and series-wound DC motor compatibility.

The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

SPECIFICATIONS

CONTROLLER TYPE	Traction/Pump Controller
MODEL NUMBER	SC2x96
SWITCHING FREQUENCY	15.7 kHz
NOMINAL VOLTAGE	72/96 Volts
OPERATING VOLTAGE RANGE	43 to 130 Volts
VOLTAGE SURGE	150 Volts @ 30-second rating
CURRENT LIMIT	650 Amperes

PHYSICAL SPECIFICATION

PRODUCT WEIGHT	7.5 kg
CONTROLLER DIMENSIONS
Length	360 mm
Width	230 mm
Height	113 mm
INGRESS PROTECTION	IP34
HUMIDITY	95%
AMBIENT TEMPERATURE
Operating	-30 °C to 40 °C
Storage	-40 °C to 70 °C

LIST OF FEATURES

Microprocessing control unit
High-frequency operation
Safe start due to Static Return to Off
Embedded watchdog monitors internal operations
Thermal Compensation
Under- and over-voltage protection
Internal fault detention
Adjustable parameters
Bypass
Regenerative and plug braking
Power steering
Field weakening
Seat switch timer
Dashboard display
