Sevcon 24/48V 270A Traction Controller w/Options 63140283
Sevcon 24/48V 270A Traction Controller w/Options 63140283




Price: $654.75

Price with Selected Options: $654.75


Product Code: 63140283


Condition*:
Remanufactured OEM ($654.75)
Repair Service ($523.80)

Qty:
Description

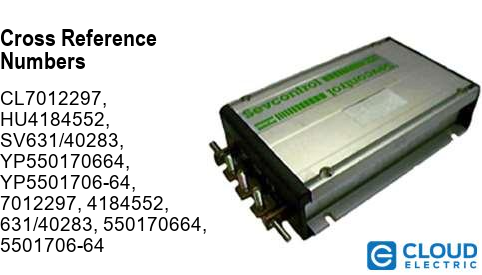

Cross Reference:

CL7012297, HU4184552, SV631/40283, YP550170664, YP5501706-64
7012297, 4184552, 631/40283, 550170664, 5501706-64

Please select the preferred condition for Sevcon 24/48V 270A Traction Controller w/Options 63140283 if options are available.

Remanufactured OEM Sevcon 24/48V 270A Traction Controller w/Options 63140283 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Sevcon 24/48V 270A Traction Controller w/Options 63140283 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.




Sevcon 24/48V 270A Traction Controller w/Options 63140283

PRODUCT DESCRIPTION

The Sevcon 63140283 is a traction controller from Sevcon. It has the latest microprocessor and MOSFET technology, which offer advanced features. The traction controllers are utilized for a wide range of electric vehicles such as personnel carriers, forklifts, warehouses, and pallet trucks. The controller is capable of operating silently, increasing the life of the components in the system, and improving economically due to its ability to reduce maintenance and hardware costs.


Sevcon 63140283 is a 24/48-volt Options model with a 2-minute current rating of 270 amperes. There are numerous functionalities offered due to its microprocessor software. Some of its features are cutback functions, system protection through intricate circuitry, and high-quality hardware. Aside from the embedded features, there are optional features that can be added according to the demand for the controller. A calibration unit is optional allowing the operator to adjust parameters digitally. A more detailed specification is shown below.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.



SPECIFICATION

VOLTAGE

24/48 V

OPERATING FREQUENCY

200 Hz

AMBIENT TEMPERATURE (OPERATING)

-30 deg. C to 40 deg. C

AMBIENT TEMPERATURE (STORAGE)

-40 deg. C to 90 deg. C

MAXIMUM HUMIDITY

95%

CURRENT RATING


  • 2 Minute

270 A

  • 1 Hour

125 A

  • Bypass (OPTIONS only)

540 A


SPECIFICATION OF THE MECHANICAL DESIGN

DIMENSION


  • Length

258 mm

  • Width

140 mm

  • Height

63 mm


FEATURES

Features

Purpose

Packaging (Encapsulation)

Protects the controller and prevents product tampering

Failproof

The controller is equipped with premium software and hardware that helps in system protection through immediate fault detection and speedy counteraction

System Protection

Voltage, reverse polarity, input, rollback, and temperature protection are embedded to prevent runaway conditions

Static Return to OFF

The key switch can only be turned ON once the direction switch is set to NEUTRAL

Diagnostic LED

Informs the operator about the system diagnostics

Adjustor and Calibrator

A piece of equipment used to adjust parameters digitally

Hours Counter

65, 000 hours of controller pulsing time

Service Log

Records data experienced by the controller


OPTIONAL FEATURES

  • Bypass: Allows improved efficiency and speed. It also allows the controller to exceed the maximum current limit once the throttle is in the maximum position.

  • Belly Switch: Protects the vehicle from walkies, an EEC Directive

  • Field Weakening: Increases the top speed as the contactor reaches full throttle

  • Power Steer: Reduces the steering effort needed

  • Seat Switch: Allows seat adjustment for driver’s comfort

  • Electric Brake: Once the delay is set to neutral, the delay can be accessed together with the Belly switch


MECHANICAL DESIGN


TRACTION CONTROLLER WIRING
