23-9127200 : New - Delta-Q Quiq Standard 72V Charger

23-9127200: New - Delta-Q Quiq Standard 72V Charger

PRODUCT DESCRIPTION

Delta-Q chargers are high in frequency and provide excellent battery performance. It is flexible and compact for easy installation on-board. The 912-7200 is a 72 volt charger and 12 ampere current limit. This charger allows passive cooling without using a fan. It is completely sealed to protect from extreme conditions. It can operate on electric vehicles that carry both 120 and 230 volts. The ring terminal connections have temperature sensors and interlocks. Please note that AC cable is not included.

The charger can now be purchased here in Cloud Electric, your one-stop shop for all your electric components needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

FEATURES

AC INPUT VOLTAGE RANGE	85-265 VAC
AC INPUT FREQUENCY	45/65 Hz
NOMINAL DC OUTPUT VOLTAGE	72 volts
MAXIMUM DC OUTPUT CURRENT	12 amperes
MAXIMUM DC OUTPUT POWER	1,000 watts
MAXIMUM DC OUTPUT VOLTAGE	100 volts
DEEP DISCHARGE RECOVERY	18 volts
MAXIMUM INTERLOCK CURRENT	0.5 amperes
BATTERY TYPE	Lead acid, lithium ion
REVERSE POLARITY	Electronic protection with auto-reset
SHORT CIRCUIT	Electronic

SPECIFICATIONS

WEIGHT	5 kg
DIMENSIONS
Length	280 mm
Width	246 mm
Depth	110 mm
TEMPERATURE
Operating	-30°C to +50°C
Storage	-40°C to +70°C
ENVIRONMENTAL	Enclosure: IP66 AC Input Connector: IP20

DIAGRAM

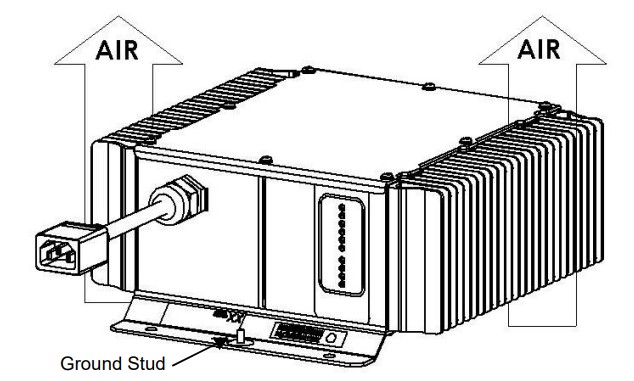

CHARGER MOUNTING

STANDARD CHARGER CONNECTIONS
