Curtis 24V 200A PM Motor Controller 1213-5101
Curtis 24V 200A PM Motor Controller 1213-5101




Price: $334.65

Price with Selected Options: $334.65


Product Code: 1213-5101


Condition*:
Remanufactured OEM ($334.65)
Repair Service ($267.72)

Qty:
Description Manuals & Diagram

Cross Reference:

CL7008098, CT1213-5101, HU4068331, YP550068031, YP5500680-31
7008098, 1213-5101, 4068331, 550068031, 5500680-31

Please select the preferred condition for Curtis 24V 200A PM Motor Controller 1213-5101 if options are available.

Remanufactured OEM Curtis 24V 200A PM Motor Controller 1213-5101 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 24V 200A PM Motor Controller 1213-5101 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.




Curtis 24V 200A PM Motor Controller 1213-5101

PRODUCT DESCRIPTION

The electronic DC motor speed controller, Curtis Controller Model 1213-5101, is used for permanent magnet (PM) motors utilized in vehicles such as mobility aids and AGVs, among others. The controller is designed as a four-quadrant, full bridge that indicates control in direction and allows regenerative braking enabled when going up and down the slopes. Lastly, contactors are not necessary for this controller to control deceleration.


The Curtis 1213-5101 is a 24-volt model with a current limit of 200 amperes. It weighs 1.13 kg and is 165 mm in length, 122 mm in width, and 60 mm in depth. The controller provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.



SPECIFICATIONS

VOLTAGE


  • Nominal Voltage Range

24 V

  • Operational Voltage (Max)

24 V Model: 30 V

  • Cutoff (Overvoltage)

24 V Model: 42 V

  • Cutoff (Undervoltage)

24 V Model: 16 V

  • Voltage Drop

0.45 V @ 60 A

OPERATING FREQUENCY

15 kHz

MOTOR RESISTANCE (MIN)

40 mOhm

CURRENT


  • 30-second Rating

200 A

  • 1 Hour Rating

70 A

  • Standby Current

150 mA at 24 V

BRAKE LIGHT OUTPUT

None



PHYSICAL SPECIFICATION

WEIGHT

1.13 kg

DIMENSION

  • Length

165 mm

  • Width

122 mm

  • Depth

60 mm

PACKAGING

IP54 with boots

IP40 without boots


FEATURES

Feature

Purpose

Brake Control and Variable Drive Speed

Allows accurate vehicle control for an improved driving experience

Full Bridge Power MOSFET

Highly efficient and noiseless operation

Current Limiting

Protects circuitry

Potentiometer

Acceleration and deceleration rates and reversing speed are fully modifiable

Anti-Rollback

A safety function that guarantees no unintentional mobilization will occur

Missing Brake Detection

Restricts the controller once the brake is detected to have an open circuit

Brake Driver (Current-Limited)

The controller is protected from shorts on the brake and wiring

Cutback Function (Undervoltage)

Provides protection from low battery voltage (internal and/or external)

Polarity Protection

Protects the controller by remaining off when the battery wire is reversed due to installation

Neutral Throttle

When the vehicle is off and unmanned, it brakes motor

Push

Allows vehicle to be moved even with the key off position with limited speed to protect the motor from being shorted

Easy Installation

No further alterations are necessary and utilize a two-wire potentiometer

Plating (Bus Bars)

Protection for solid copper bus bars



OPTIONAL FEATURES

  • High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to a neutral position.

  • IR Compensation: Allows the vehicle to be at a stable speed when going up or downhill

  • ISO Pot Fault: Detects open or shorted internal components and protects the system

  • Brake Light Driver: Powers brake light when decelerating following the engagement with the electromagnetic (EM) brake

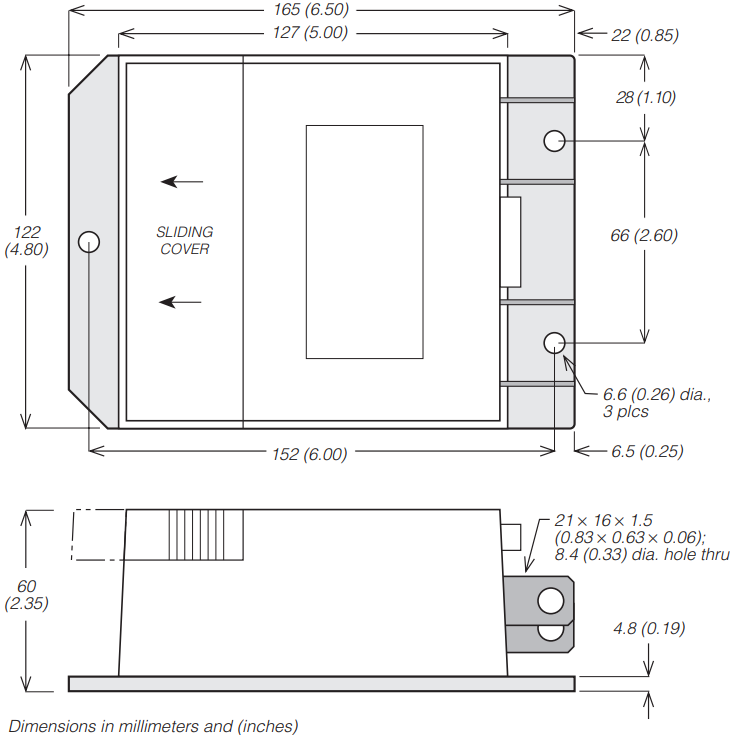

DIMENSIONS

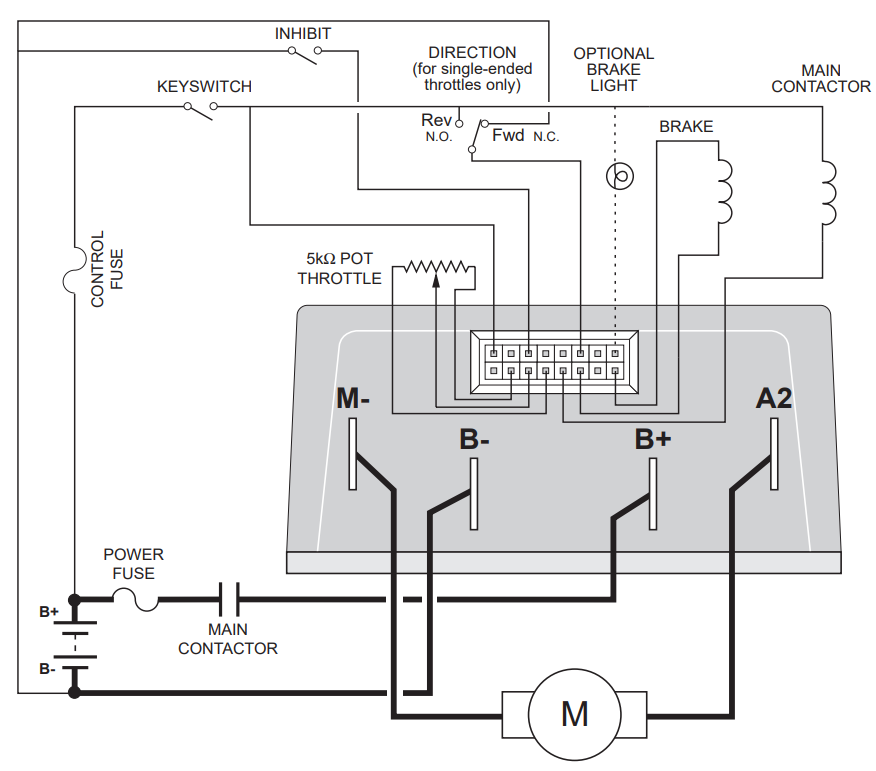

WIRING DIAGRAM
