Curtis 24/36V 500A (5K-0) PMC 1209B-4602
Curtis 24/36V 500A (5K-0) PMC 1209B-4602




Price: $590.73

Price with Selected Options: $590.73


Product Code: 1209B-4602


Condition*:
Remanufactured OEM ($590.73)
Repair Service ($472.39)

Qty:
Description Manuals & Diagram

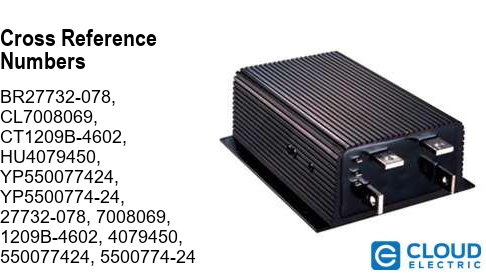

Cross Reference:

BR27732-078, CL7008069, CT1209B-4602, HU4079450, YP550077424, YP5500774-24
27732-078, 7008069, 1209B-4602, 4079450, 550077424, 5500774-24

Please select the preferred condition for Curtis 24/36V 500A (5K-0) PMC 1209B-4602 if options are available.

Remanufactured OEM Curtis 24/36V 500A (5K-0) PMC 1209B-4602 will ship to your location in 1-3 days. Stock rebuilt items will generally ship same day unless prior testing is required. All rebuilt items are subjected to a core charge. The core charge will be refunded once we receive the core in one of our warehouse locations.

Repair Service for Curtis 24/36V 500A (5K-0) PMC 1209B-4602 will include a complementary pick up from anywhere in USA (48 contiguous states). We can schedule a pick up the same day of order. The repair process typically takes 3-5 business days. But can be completed sooner if parts are readily available. (this is usually the case for top selling items)

For more information, please call us at 1844-808-5280. This unit comes with 6 Months warranty up-gradable to 36 months.




Curtis 24/36V 500A (5K-0) PMC 1209B-4602

PRODUCT DESCRIPTION

The electronic motor speed controller, Curtis Controller Model 1209B-4602, operates at a high frequency of 15 kHz, making these controllers a noiseless and cost-efficient choice as they permit smooth control of brake, torque, and speed. It is designed to suit various industrial applications such as vehicles used for material handling and on-road cars.


The Curtis 1209B-4602 is a 24/36-volt model with a current limit of 500 amperes and a 5K-0 ohms throttle input. It weighs 4 kg and is 231 mm in length, 180 mm in width, and 80 mm in depth. It provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


SPECIFICATIONS

NOMINAL VOLTAGE RANGE

24-36 V

VOLTAGE DROP

0.15 V @ 100 A

UNDERVOLTAGE CUTBACK

16 V

CURRENT LIMIT

500 A

CURRENT RATING


  • 2 Minutes

500 A

  • 5 Minutes

350 A

  • 1 Hour

225 A

RESISTANCE

270 ohms

POWER RATING

5 W

STANDBY CURRENT

20 mA

OPERATING FREQUENCY

15 kHz

TEMPERATURE RANGE DURING OPERATION

-25°C to 75°C

THROTTLE INPUT

5K-0 ohms


PHYSICAL SPECIFICATIONS

WEIGHT

4 kg

DIMENSION

  • Length

231 mm

  • Width

180 mm

  • Depth

80 mm


KEY FEATURES

Feature

Purpose

Brake Control and Variable Drive Speed

Allows accurate vehicle control for an improved driving experience

Power MOSFET

Highly efficient and noiseless operation

Protection and Compensation Circuit for Temperature

Allows stable current limit and cutback function for during under and over temperature condition

Cutback Function (Undervoltage)

Provides protection from low battery voltage (internal and/or external)

Circuitry for Fault Detection

Helps in preventing runaway conditions and monitors components such as the battery, and a bypass contactor, among others

Easy Installation

No further alterations

Tin-plating (Bus Bars)

Protection for solid copper bus bars

Push-in Connectors

Allows control wiring



OPTIONAL FEATURES

  • High Pedal Disable: Allows a safe start by monitoring the status of the throttle. If the vehicle is started with an applied throttle, this feature disables it from operating until the throttle is returned to the neutral position



DIMENSION


WIRING DIAGRAM
