Curtis 24/36V 275A (5K-0) PMC 1204-002
The electronic motor speed controller, Curtis Controller Model 1204-002, operates at high frequency, making them a noiseless and cost-efficient choice as they allow smooth control of brake, torque, and speed. It is designed for various industrial applications, ranging from vehicles used for material transport to golf carts.

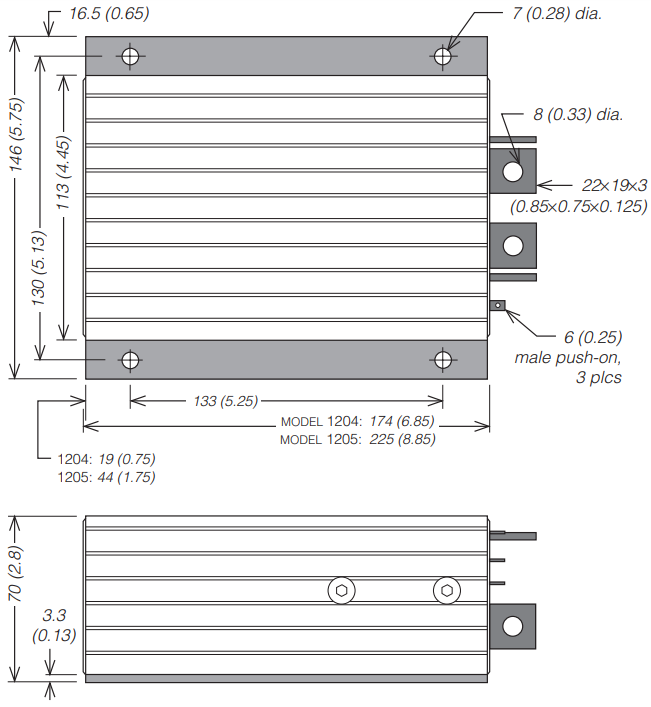

The Curtis 1204-002 has a nominal battery voltage of 24-36 volts with a current limit of 275 amperes and a 5K-0 ohms throttle input. It weighs 1.8 kg and is 174 mm in length, 146 mm in width, and 70 mm in depth. It provides a better driving experience due to embedded features and optional features offered, which can be added according to the preference and demands of the desired application.
The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.

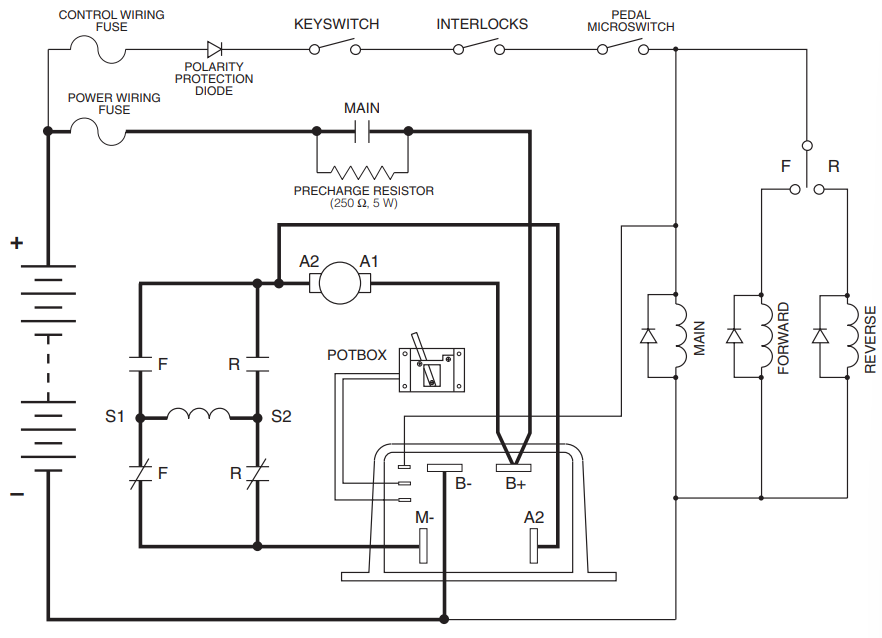

Curtis provides a simple wiring procedure in its motor control products so that you can fit it in your vehicle conveniently. These external components are needed along with this electric motor controller. The list is given below
The detailed directions to install the Curtis 1204 electric motor controller is available in the instruction manual with illustrations, relevant figures, and wiring diagrams.
