Kelly-ZJWT-24V-400A : Contactor Reversing Unibody 24 Volt Coils 400 amp
Kelly-ZJWT-24V-400A : Contactor Reversing Unibody 24 Volt Coils 400 amp



Price: $99.95


Availability:: Ships from Us Upon Order
Product Code: KELLY-ZJWT-24V-400A
Qty:

Description


Kelly-ZJWT-24V-400A : Contactor Reversing Unibody 24 Volt Coils 400 amp

PRODUCT DESCRIPTION

Kelly ZJWT is a 400-amp main contactor from Kelly Controllers. The contactor allows reversing the motor’s rotation. The product is a 24-volt model with a current of 400 amperes. The contactor can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


SPECIFICATIONS

RATED VOLTAGE OF COIL 24 V
LOADING CURRENT 400 A

DIELECTRIC STRENGTH


  • Between Contacts

2000 VAC

  • Between Coil and Contacts

1500 VAC

VOLTAGE


  • Pickup

70%

  • Dropout

5 to 30%

PRODUCT LIFE


  • Hardware

100k Ops

  • Electrical

50k Ops

CONTINUOUS CURRENT

300 A

OPERATING FREQUENCY

16.6 kHz

AMBIENT TEMPERATURE

-40°C to 85°C

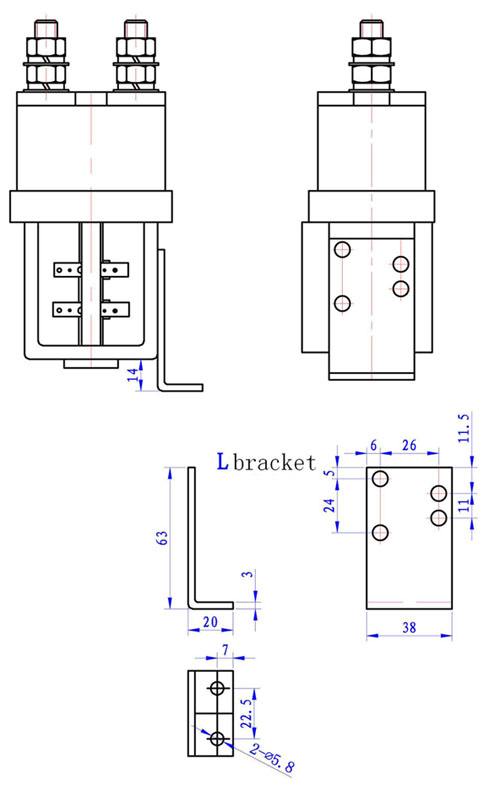

DIMENSIONS
